Work example

Door lock replacement & smart lock installation

An example showing lock hardware removal, installation work and fitted door-lock details.

The work shown

Removed hardware through to fitted lock details

This example records a door lock replacement and installation process: the original hardware is removed, the lock components are prepared, and the fitted lock is shown from both sides of the door.

The photos do not establish a product endorsement, access-control level or security rating. The appropriate hardware and scope depend on the door, lockset and property requirements.

Discuss a door-lock request Explore door services

Example gallery

Lock replacement and installation details

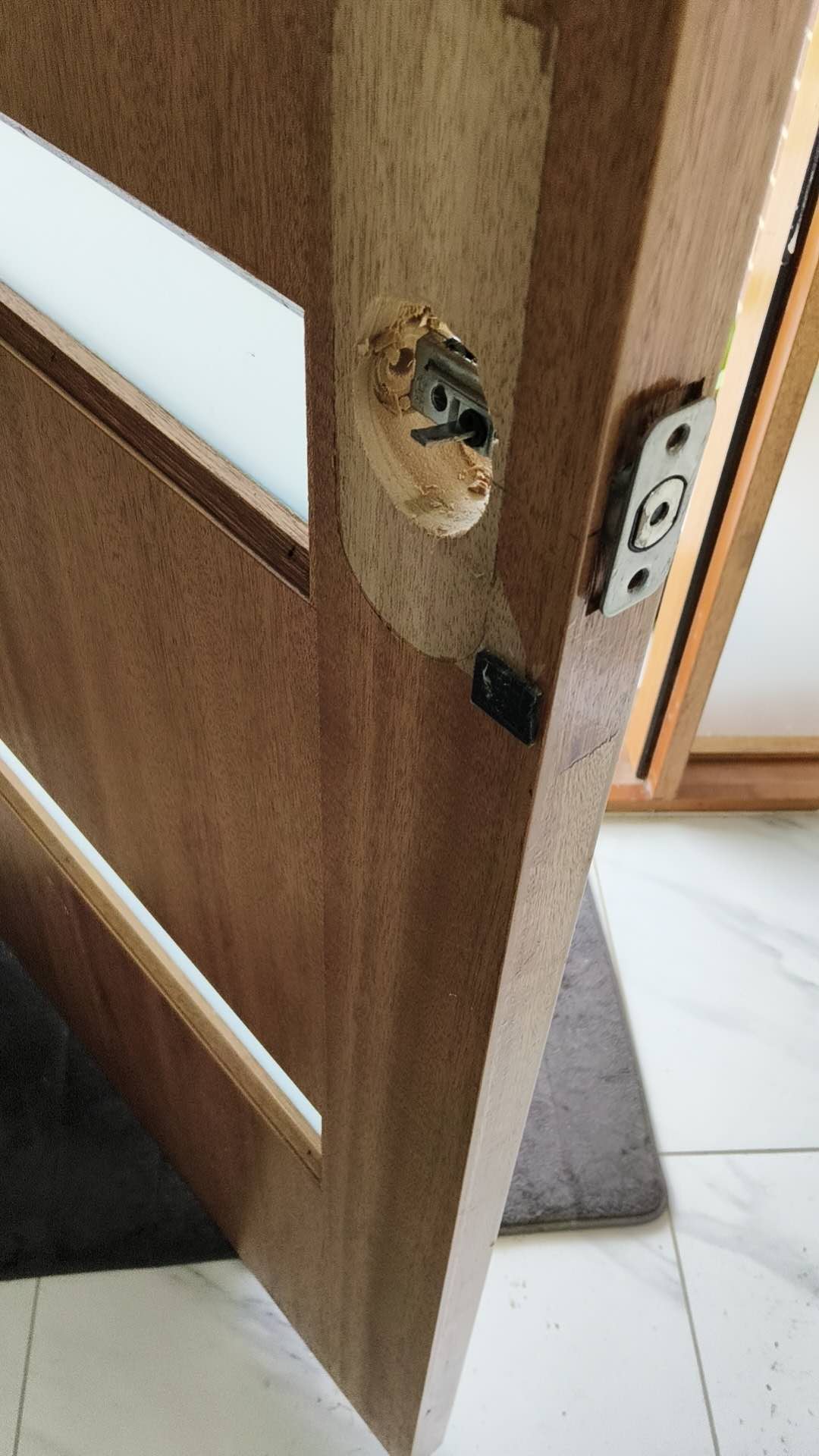

Door edge with existing lock hardware removed — **Hardware removed**Door prepared after the existing lock hardware is removed

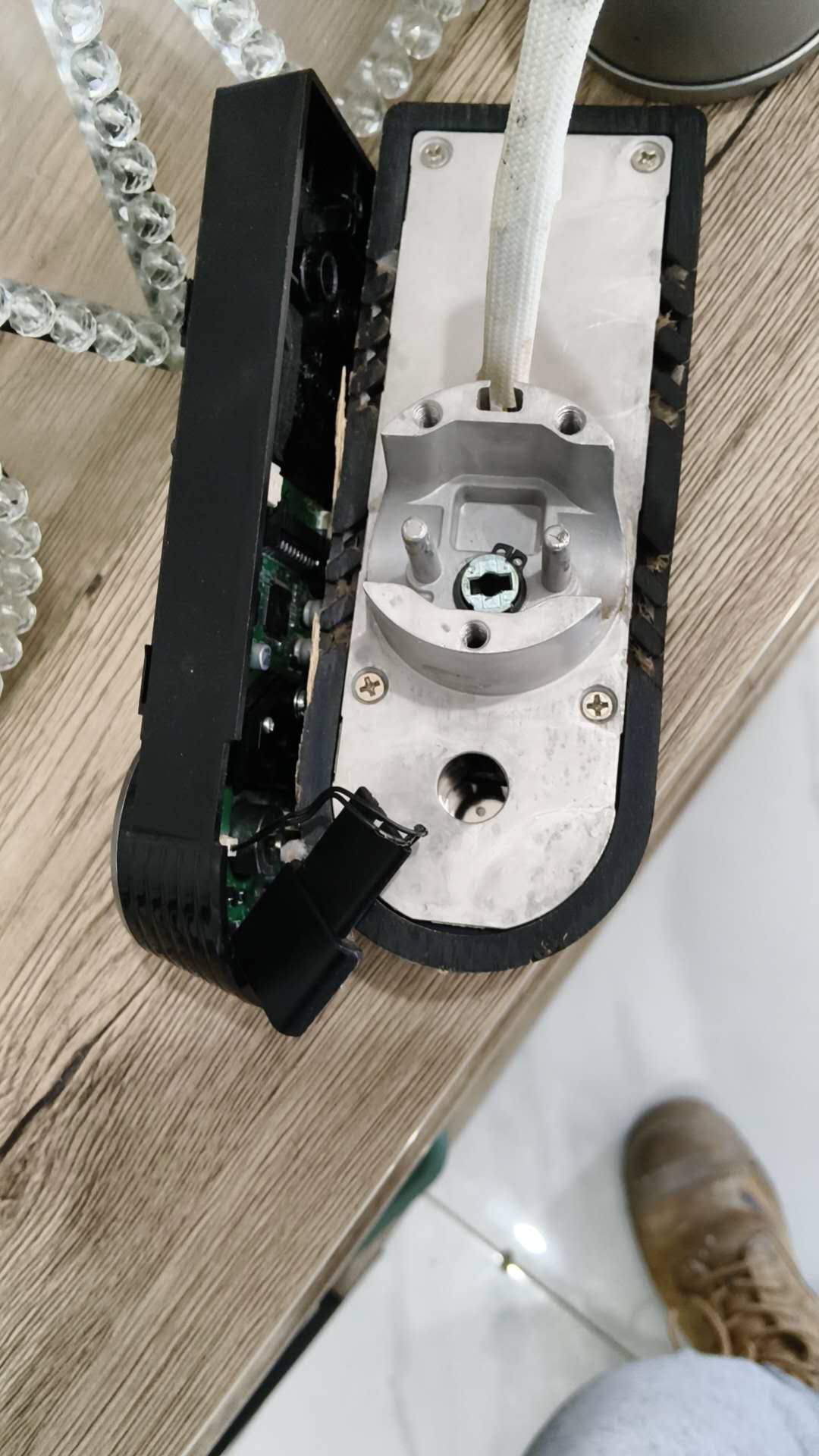

Door lock hardware opened for installation work — **Installation work**Lock components opened during installation

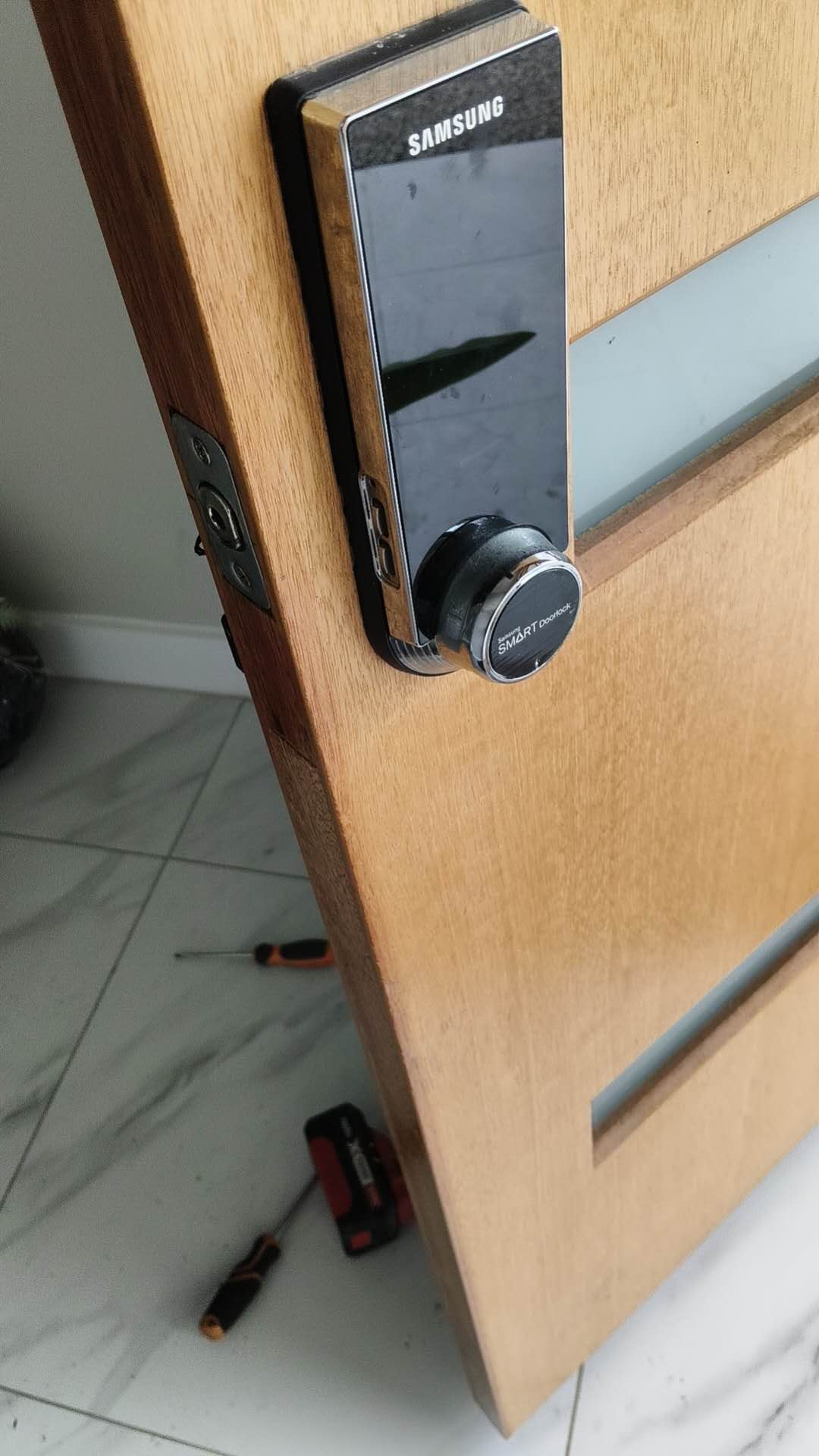

Fitted electronic door lock on a timber door — **Fitted lock**New lock fitted to the door face

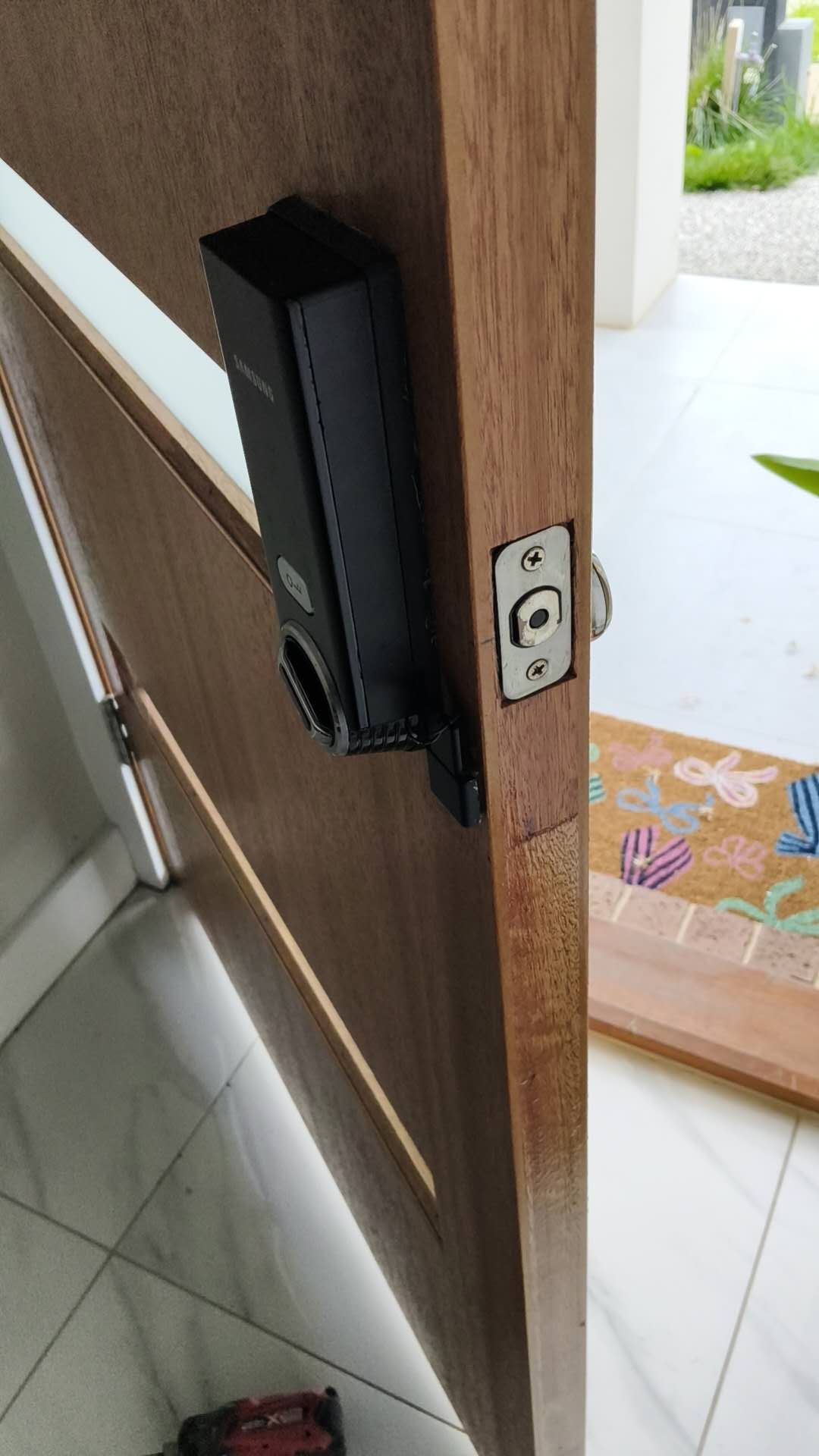

Installed door lock shown from the opposite side — **Opposite-side detail**Fitted lock and latch detail from the other side
